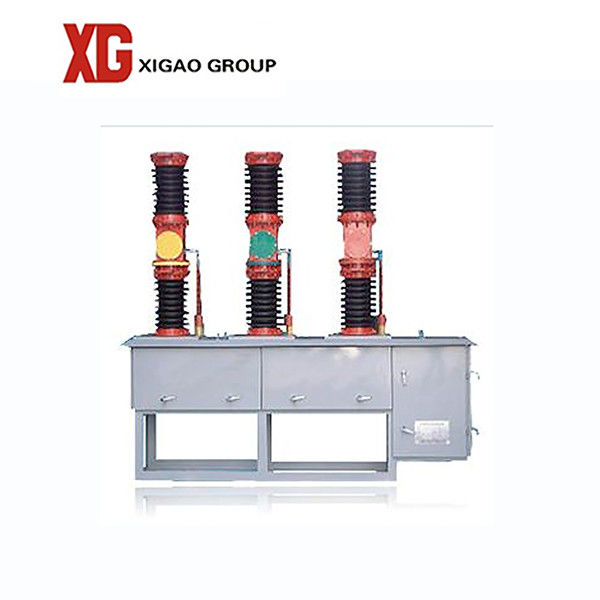

ZW7 33kv 35kv 40.5kv Outdoor High Voltage Vacuum Circuit Breaker

Basic Information
Place of Origin: XIAN, China
Brand Name: XG
Certification: ISO CCC
Model Number: ZW7
Minimum Order Quantity: 1 SET
Packaging Details: WOODEN CASE
Delivery Time: 3-7 DAYS
Payment Terms: L/C, T/T, D/A, D/P, Western Union, MoneyGram
Supply Ability: 2000 SET
Detail Information
Warranty: 12 Months OEM: Yes
Package: Exporting Standard Package MOQ: 1set
Operation Type: Electric Or Manual Life Span: More Than 15 YEARS
Working Temperature: -45℃ To +40℃ Function: Control And Protection
High Light:

ZW7-40.5 Vacuum Circuit Breaker


+40℃ Vacuum Circuit Breaker


35kv Vacuum Circuit Breaker

Product Description

1.  ZW7 40.5kv 33kv 35kv 40.5kv outdoor high voltage vacuum circuit breaker vcb


ZW7-40.5 series outdoor high voltage vacuum circuit breaker is three phase AC 50Hz, rated voltage is 40.5kV outdoor high-voltage electrical equipment , attached the spring operator or electromagnetic actuator can be well controlled electric opening and closing can also be Manual storage, manually open and close. Design performance meet GB1984-89<<AC high voltage circuit breakers>>; national standards, and meet the IEC-56<<high-voltage AC circuit breakers>>; International Electro-technical Commission standards. ZW7-40.5 Type vacuum circuit breaker is mainly used for outdoor 35kV power transmission system control and protection also applies to urban and rural power distribution networks and industrial and mining enterprises in the normal operation and short circuit protection purposes. The overall structure of the insulator pillar product type; built vacuum interrupter type on the vase, porcelain vase for the next pillar vase. For frequent operation place. And has good sealing, anti-aging, high pressure, no burning, no explosion, long life, convenient installation and maintenance features.


2.  main function:


2.1. It can be equipped with spring or electromagnetic operating mechanism, with reliable mechanical performance and frequent operation; no fire and explosion hazard;

2.2. Built-in current transformer, the lecturer's precision reaches 0.2, which can realize three-phase interactive protection;

2.3. With condensation controller, it can keep the circuit breaker running reliably under certain temperature and humidity.

2.4. Vacuum arc extinguishing, strong breaking capacity, long electrical life and 10,000 mechanical life;

2.5. Simple structure, maintenance-free, long maintenance period;

2.6. Good insulation performance and strong anti-pollution ability;


3. Environmental conditions:


3.1. Ambient air temperature: upper limit +50 ° C, lower limit -30 ° C;

3.2. Amplitude: seismic intensity of 8 degrees;

3.3. Pollution level: Level III;

3.4. Large daily temperature difference: no more than 35 °C.

3.5. Altitude: ≤3000m (If the altitude is to be increased, the rated insulation level will increase accordingly);

3.6.. Wind pressure: no more than 700Pa (equivalent to a wind speed of 34m / s;


4. main technical parameters:


NO Item Unit Value
1 Rated voltage KV 40.5
2 Rated insulation level Power frequency withstand voltag Dry test 95
Wet test 80
Lightning impulse withstand voltage (peak) 185
3 Rated current A 1250,1600,2000
4 Rated short-circuit breaking current KA 20,25,31.5
5 Rated operation sequence   0-0.3s-combination-180s-combination
6 Rated short circuit current breaking times times 12
7 Rated short circuit closing current (peak) KA 50,63,80
8 Rated peak withstand current
9 Rated short-time withstand current KA 20,25,31.5
10 Rated short circuit continuous current S 4
11 Average opening speed m/s 1.5±0.2
12 Average closing speed 0.7±0.2
13 Contact closing bounce time s ≤2
14 Three-phase combined (minute) gate synchronous time difference ≤2
15 Closing time ≤150
16 Opening time ≤60
17 Mechanical life times 10000



Rated operating voltage and auxiliary circuit rated voltage V DC220,110,24
19 DC resistance per phase circuit (without transformer) μΩ ≤100
20 Dynamic and static contacts allow wear thickness mm 3
21 weight kg 800

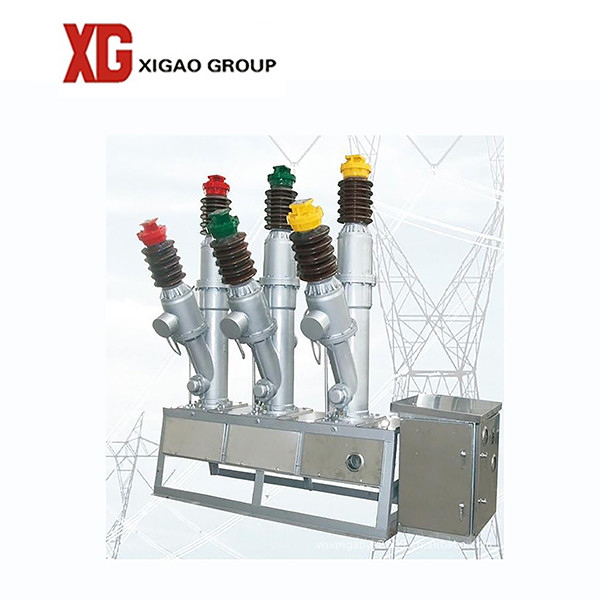

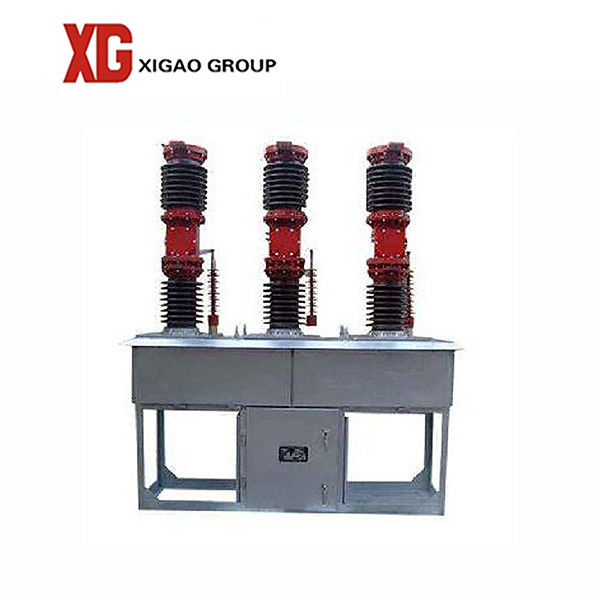

5.  Photo and drawing




6. Factory


ZW7 33kv 35kv 40.5kv Outdoor High Voltage Vacuum Circuit Breaker 1


7. FAQ


1. Send the technical data, better for all useful information; we will make a good recommendation.

2. The lead time depend on quantity of order. Some standard type is on stock. Otherwise, it will take 3-15 days.

3. Usually shipped by sea, small order or urgent order we can send you by air.

4. All our activities are accredited to ISO 14001:2015 and IEC standard.

If possible please attach one reference picture to avoid any misunderstanding or any links from our website for we get a better understanding.
