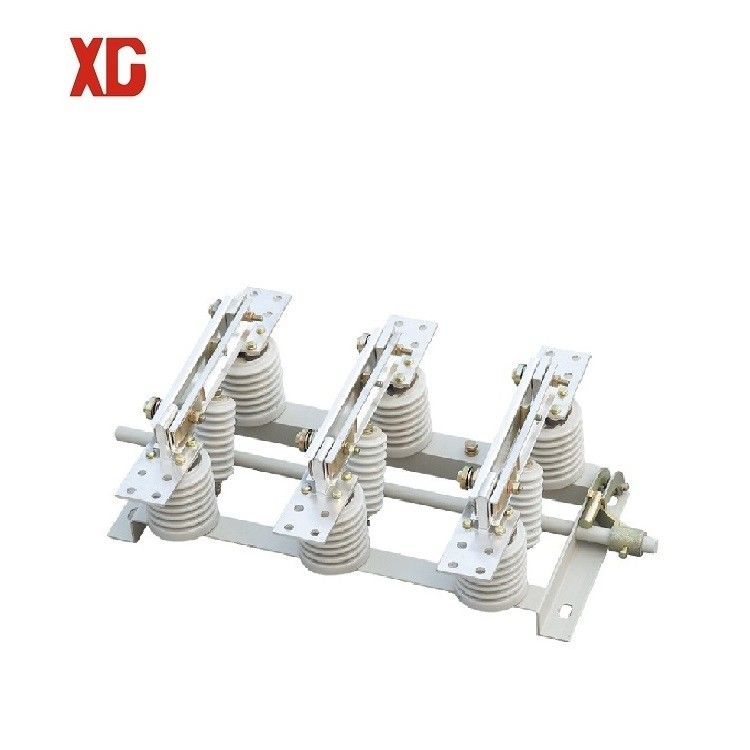

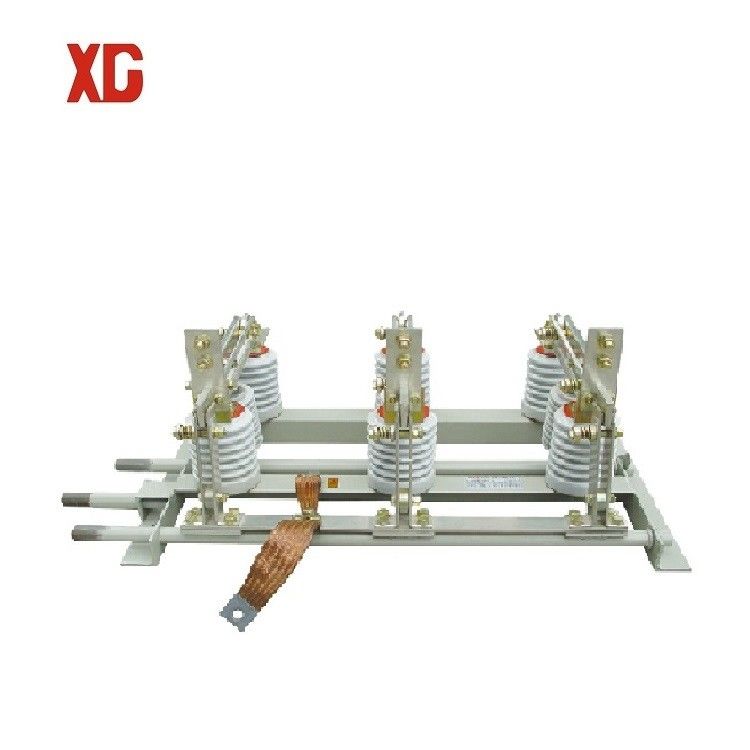

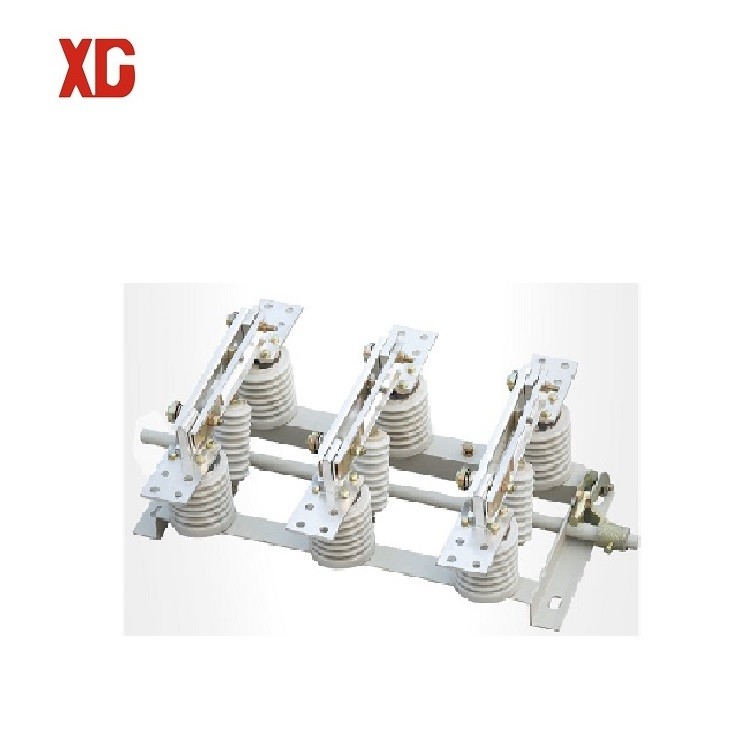

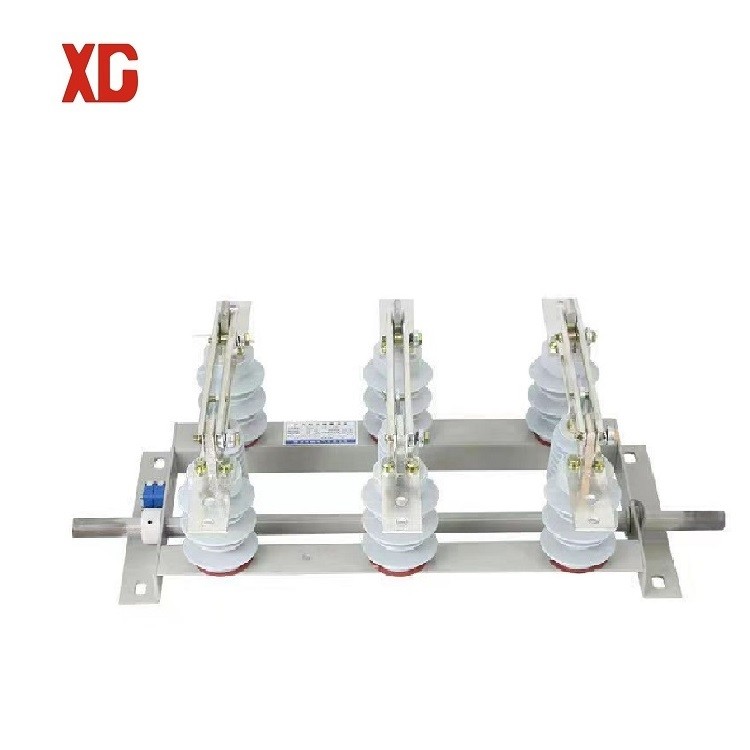

GN19 12kV High Voltage Disconnect Switch Power receiving distribution

Basic Information
Place of Origin: XIAN,CHINA
Brand Name: XG
Certification: ISO
Model Number: GN19
Minimum Order Quantity: 1 SET
Packaging Details: WOODEN CASE
Delivery Time: 3-7 DAYS
Payment Terms: L/C, T/T, D/A, Western Union, MoneyGram
Supply Ability: 2000 SET
Detail Information
Max. Voltage: 12KV Max. Current: 1250 A
Number Of Pole: 3 Product Name: Isolating Switch
Product Features: Power Receiving, Distribution, Control, Protection Function: Power Receiving, Distribution, Control, Protection
Installation Method: Indoor Switch Cabinet Installation
High Light:

GN19 High Voltage Disconnect Switch

,

12kV High Voltage Isolator Switch

,

Power Receiving HV Disconnect Switch


Product Description

1.GN19 12kV Professional Manufacturer Of Series Disconnection Switch

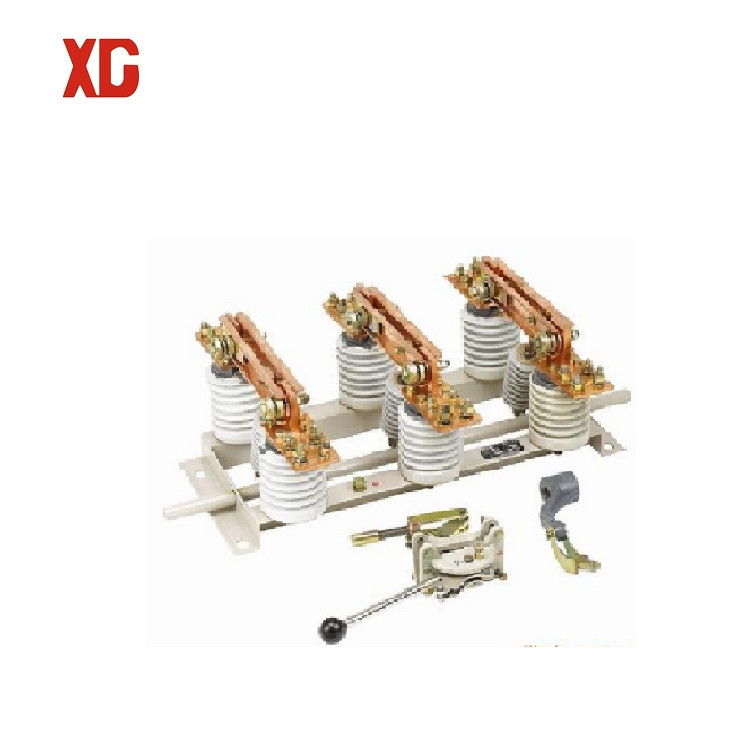

GN19-12 (C) indoor high-voltage disconnector is applicable to power systems with rated voltage lower than 12kV and AC 50/60Hz. It is equipped with CS6-1 manual operating mechanism, which is used to open and close the circuit under no-load condition. There are additional pollution type, high-altitude type and power indication type.



2.Working condition



The altitude: 1000m~3000m

The ambient temperature: -30°C~40°C

The relative humidity of air: monthly≤90°C,daily≤95°C

The wind pressure: ≤700pa(wind speed 34m/s)

Amplitude: earthquake degree 8

Environment degree: degree III

Cannot be use on the condition of the danger of fire and blast, heavy pollution, chemical etching, strong shake etc.



3.Technical parameter



Model No Rated voltage Rated current (A) Rated short time withstand current(4s) KA Rated peak withstand current KA
GN19-12/400-12.5 12kV 400A 12.5 31.5
GN19-12/630-20 12kV 630A 20 50
GN19-12/1000-31.5 12kV 1000A 31.5 80
GN19-12/1250-12.5 12kV 1250A 31.5 80
GN19-12C/400-12.5 12kV 400A 12.5 31.5
GN19-12C/630-20 12kV 630A 20 50
GN19-12C/1000-31.5 12kV 1000A 31.5 80
GN19-12C/1250-31.5 12kV 1250A 31.5 80



4. FAQ



1. Technology ensure the quality satisfy international request.

2.Generally we promise one - two years quality guarantee, some products will be extended longer time for life span.

3. For tender cooperation, it is welcome to discuss the detail in between.

4. Some type reports are provided accordingly.

5. Our factory is 250000m2 for production and office.

6. There are four subsidies in our group company. So our whole group company can produce switchgear, power transformer, load break switch, disconnect switch, vacuum/sf6 circuit breaker, fuse, surge arrester, CT PT, Metering unit.
